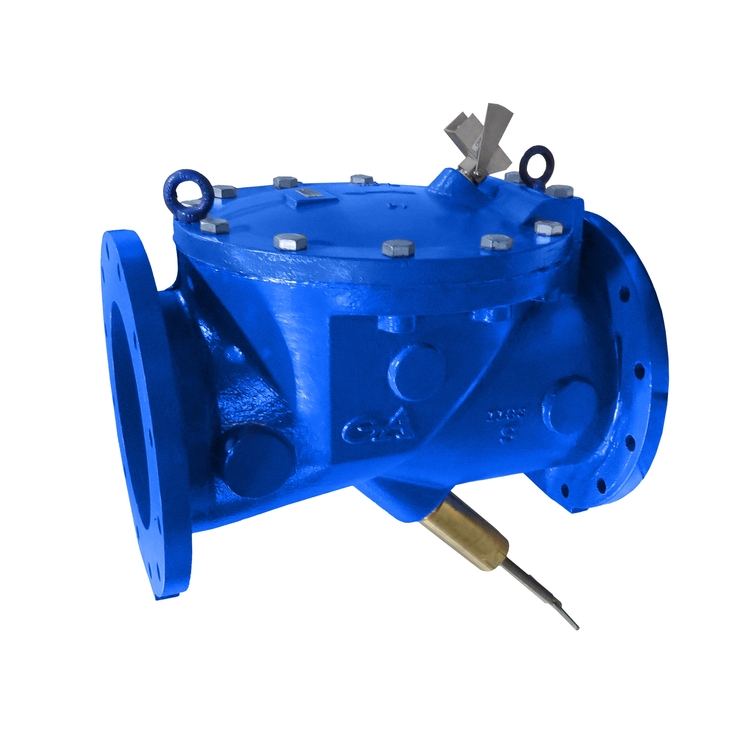

GA Figure 200:

Rubber Flapper Check Valve

Size: 2" to 42"
Valve Type: Check Valve
Fluid: Wastewater, Water

VAG GA Industries Figure 200-D Rubber Flapper Check Valves have a full 100% flow area for low head loss and clog resistance.Long term reliability is ensured because the valve's reinforced rubber flexible disc is the only moving part and it's integral O-ring provides drop tight sealing at both low and high working pressures.

The valve's 45-degree seat angle, short stroke and its flexible disc's inherent memory combine to provide quick-closing, slam resistant operation.

The Figure 200-D can be easily fitted with backflow device and/or a visual position indicator with or without an electrical position switch.

  • 250 PSI rated epoxy coated ductile iron body and cover
  • Tight sealing at low and high pressure
  • Flexible disc successfully passed 1 million cycle test
  • Stainless steel cover fasteners standard
  • Available with backflow device and/or position indicator
  • Optional electrical position switch
  • Body & Cover: Ductile Iron, ASTM A536 Grade 65-45-12
  • Flexible Disc: Buna-N, Nylon and Steel Reinforced
  • External Fasteners: Type 304 Stainless Steel
Corrosion Protection
  • Standard: Stainless steel external fasteners and internal/external NSF-61 certified 2-part epoxy, minimum 6 mil DFT
Drawings and Parts List
Drawing C-1391E 3"-24" w/Position Indicator
Drawing C-1395E 3"-24" w/Position Indicator & Backflow Device
Drawing C-1398A 3"-24" w/Backflow Device
Drawing C-1404A 3"-24" Plain
Drawing RF-30000A 30" Plain
Drawing RF-42000A 42" Plain
Installation, Maintenance and Operating Instructions
Figure 200 O&M 110520
Product Bulletin
GA-200RF-0416 Rubber Flapper
Sample Specification
Rfcv Rev B
Technical Datasheet
Figure 200 & SB200 30"-42" Data Sheet 200-02A
Figure 200 Data Sheet 200-01C (2 to 24in)
